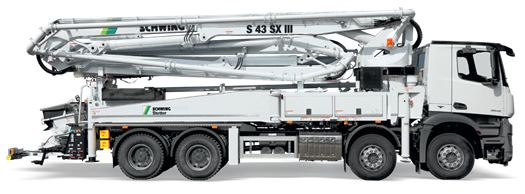

43m Schwing Roll & Z-fold boom Pump 2018



Chassis Mercedes Benz
Placing Boom 43 RZ
Maximum Vertical Reach 42.3m
Maximum Horizontal Reach 37.55m
Reach Depth 29.90m
Number of Boom Sections 5
End Hose Option 4m (1m + 3m)

Concrete Output 162m3 per hour
Maximum Pressure on Concrete 85 bar
Stroke Rate 32 per minute
Slewing Range 2 x 365degrees

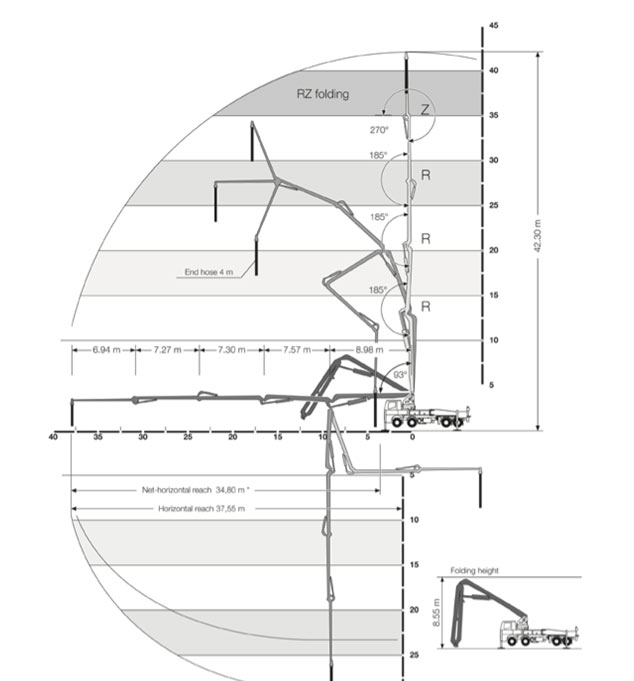

43m Schwing Roll Z fold boom Pump diagram
